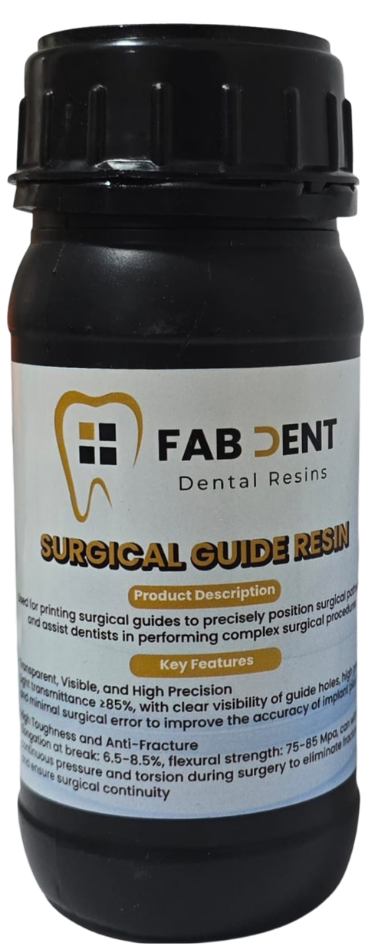

Surgical Guide Resin 250 ml
Surgical Guide Resin 250 ml
Couldn't load pickup availability
Fab Dent Surgical Guide Resin – 250ml
Precision-guided surgery starts with a reliable guide. This surgical guide resin is engineered for the accuracy and biocompatibility that implant placement demands. Designed for desktop MSLA/LCD dental 3D printers, it delivers dimensionally stable, sterilizable surgical guides that help clinicians place implants with confidence.
Key Features
- High dimensional stability – maintains tight tolerances critical for accurate implant positioning
- Biocompatible formulation – suitable for short-term intraoral use during surgical procedures
- Sterilization compatible – can be sterilized prior to use following validated protocols
- Excellent layer adhesion – strong, reliable prints with minimal post-processing failures
- Clear or translucent finish – allows visual verification of guide seating during placement
- 250ml bottle – ideal for clinics and labs printing guides on demand
Technical & Print Settings
- Wavelength: 405 nm (compatible with all Fab Dent printers)
- Recommended Layer Thickness: 0.05 – 0.1 mm
- Normal Exposure Time: 2.5 – 4 s (varies by printer and ambient temperature)
- Bottom Exposure Time: 25 – 40 s
- Post-Cure Time: 3 – 5 minutes under 405 nm UV light
- Wash: Isopropyl alcohol (IPA) ≥95% or dedicated resin wash solution
- Storage: Cool, dark location (15–25°C), away from UV light. Shelf life: 12 months unopened.
Biocompatibility
- Formulated for short-term intraoral mucosal contact (Type 1, short-term)
- Sterilizable via ethylene oxide (EtO) or cold sterilization — autoclave not recommended
- For professional dental use only. Single-patient use.
Ideal For
Implant surgical guides, bone reduction guides, and other guided surgery applications in dental clinics and oral surgery practices.
How to Use
- Shake well and load into your printer’s resin vat
- Print using the recommended settings above (fine-tune per your printer model)
- Wash thoroughly in IPA for 3–5 minutes and air-dry
- Post-cure for 3–5 minutes under 405 nm UV
- Sterilize using a validated method prior to intraoral use
Compatible Printers (Available at Fab Dent)
For professional dental use only. Single-patient use. Store in a cool, dark location away from UV light.
Product features
Product features
Key Features
- High mechanical strength – engineered to withstand long-term occlusal loads
- Excellent surface finish – smooth, dense surface ideal for polishing and glazing
- Strong biocompatibility – formulated for permanent intraoral use
- Stable colour and opacity – consistent shade across print batches for natural-looking restorations
- Precision fit – high dimensional accuracy for well-fitting crowns and bridges
- 250ml bottle – enough resin for multiple permanent restorations
- Available in shades A1, A2, and A3 – select your shade from the variant options above
Technical & Print Settings
- Wavelength: 405 nm
- Recommended Layer Thickness: 0.05 – 0.1 mm
- Normal Exposure Time: 2.5 – 4 s (varies by printer and ambient temperature)
- Bottom Exposure Time: 25 – 40 s
- Post-Cure Time: 5 – 8 minutes under 405 nm UV light (longer cure improves mechanical strength)
- Wash: Isopropyl alcohol (IPA) ≥95% or dedicated resin wash solution
- Storage: Cool, dark location (15–25°C), away from UV light. Shelf life: 12 months unopened.
Biocompatibility & Clinical Use
- Formulated for permanent intraoral use with full occlusal loading
- Biocompatible for long-term mucosal and soft tissue contact
- Recommended for use with a final glaze or polish for optimal surface hardness and aesthetics
- For professional dental use only.
Ideal For
Permanent crowns, bridges, inlays, onlays, and veneers fabricated in dental clinics and laboratories with desktop dental 3D printers.
Materials and care
Materials and care
How to Use
- Select your shade (A1, A2, or A3) before adding to cart
- Shake well and load into your resin vat
- Print using the recommended settings above (fine-tune per your printer model)
- Wash in IPA for 3–5 minutes and air-dry
- Post-cure for 5–8 minutes under 405 nm UV
- Polish and glaze for a lifelike, durable final restoration
Compatible Printers (Available at Fab Dent)
- Elegoo Saturn 4 Ultra 16K
- Anycubic Photon P1 with Dual Plate Extension
- Anycubic M7 Max
For professional dental use only. Store in a cool, dark place away from direct UV exposure.
