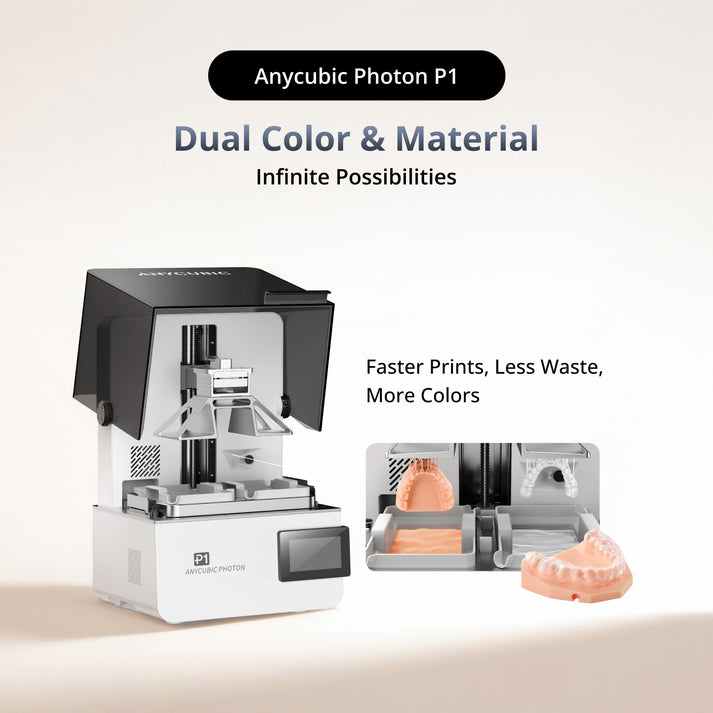

Anycubic Photon P1 with Dual Plate extension

Name: Anycubic Photon P1 with Dual Plate extension
Brand: My Store
SKU: 1234
Price: 90000.00 EGP
Availability: OutOfStock

Anycubic Photon P1 with Dual Plate extension

LE 90,000.00 EGP

~~LE 98,000.00 EGP~~ LE 90,000.00 EGP

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

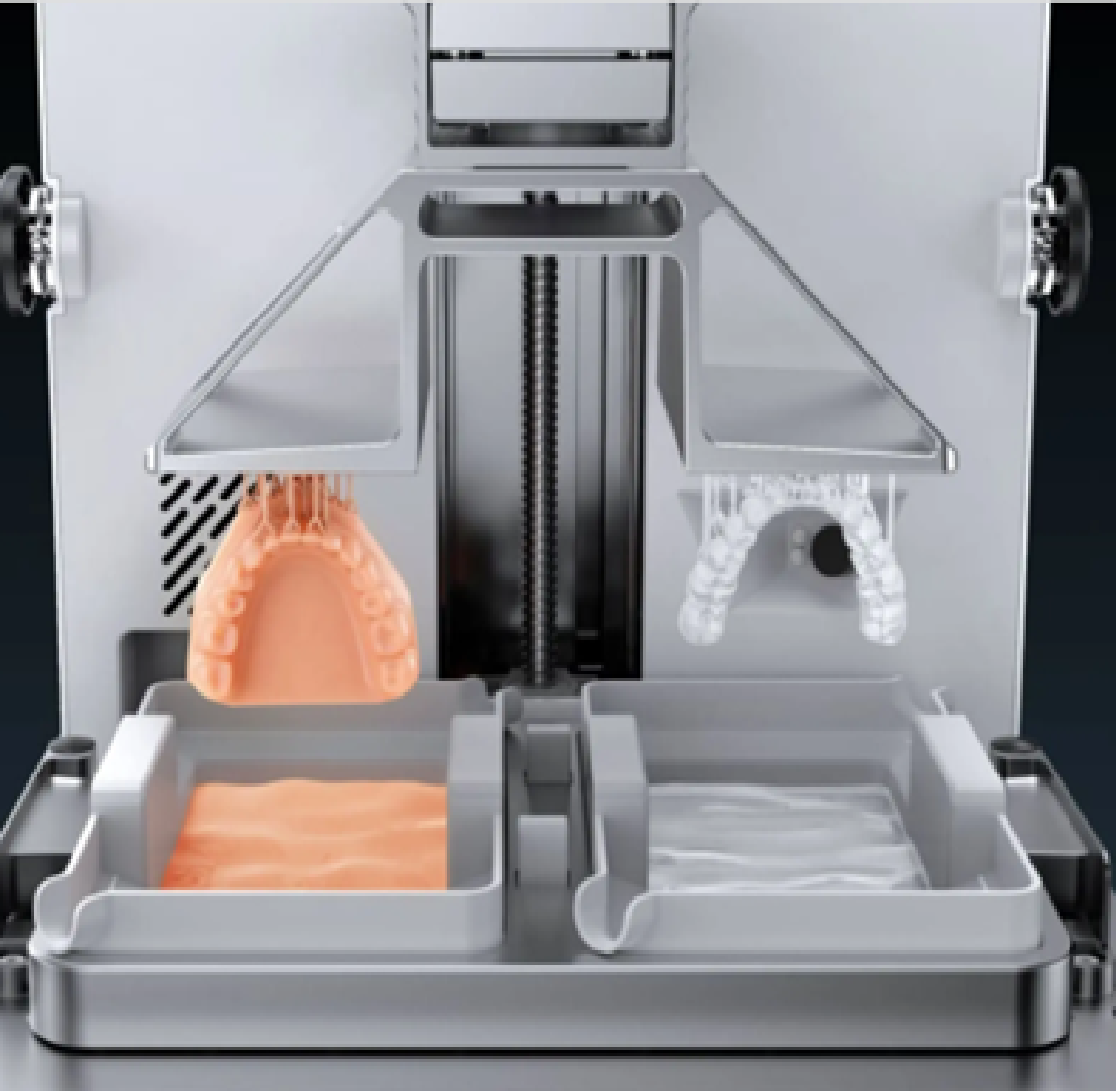

Dual Platform Multi-Tasking: Prints two full batches concurrently, maximizing output per cycle for aligner models, die sets, and crown & bridge frameworks.
Uniform UV Light Matrix: Parallel LED light source delivers over 90% light uniformity across the extended build field, eliminating edge distortion.
High-Precision Optical Engine: Crisp XY resolution preserves fine margin lines, intraoral scan details, and passive-fit implant guide geometries.
Open Resin Calibration: Full parameter control to fine-tune layer exposure, light-off delay, and lift speeds for standard 385nm/405nm dental resins.

Technical Specifications

Technology: MSLA (Masked Stereolithography) / LCD Resin 3D Printing
XY Resolution: 43 × 24 µm
Z-Axis Resolution (Layer Thickness): 0.01 – 0.15 mm
Build Volume (Single Plate): 196 × 122 × 165 mm
Build Volume (Dual Plate Extension): 392 × 122 × 165 mm (double the output per cycle)
Light Source: Parallel LED Matrix
Light Uniformity: >90% across full build area
Wavelength: 385 nm / 405 nm (dual wavelength compatible)
Resin Compatibility: Open system — compatible with standard 385nm/405nm dental resins including temporary crown & bridge, surgical guide, model, and aligner resins
Connectivity: USB, Wi-Fi
Slicing Software: Anycubic Photon Workshop, Chitubox (compatible)
Machine Dimensions: 320 × 330 × 600 mm (approx. with dual extension)
Power Requirements: 100–240V AC, 50/60Hz

Why the Dual Plate Extension?

Designed for high-volume dental labs and clinics, the Dual Plate Extension doubles throughput without purchasing a second printer. Ideal for practices printing large batches of aligner models, dies, or multiple crown frameworks simultaneously.

Compatible Resins (Available at Fab Dent)

Warranty & Support

Warranty: 12-month manufacturer warranty covering hardware defects and component failures.
After-Sales Support: Our dental 3D printing specialists are available to assist with setup, calibration, print settings, and resin compatibility. Reach us via WhatsApp or email for fast, expert support.
Local presence: Based in Egypt — faster support response and local delivery for dental clinics and labs.

Product features

Key Features

High mechanical strength – engineered to withstand long-term occlusal loads
Excellent surface finish – smooth, dense surface ideal for polishing and glazing
Strong biocompatibility – formulated for permanent intraoral use
Stable colour and opacity – consistent shade across print batches for natural-looking restorations
Precision fit – high dimensional accuracy for well-fitting crowns and bridges
250ml bottle – enough resin for multiple permanent restorations
Available in shades A1, A2, and A3 – select your shade from the variant options above

Technical & Print Settings

Wavelength: 405 nm
Recommended Layer Thickness: 0.05 – 0.1 mm
Normal Exposure Time: 2.5 – 4 s (varies by printer and ambient temperature)
Bottom Exposure Time: 25 – 40 s
Post-Cure Time: 5 – 8 minutes under 405 nm UV light (longer cure improves mechanical strength)
Wash: Isopropyl alcohol (IPA) ≥95% or dedicated resin wash solution
Storage: Cool, dark location (15–25°C), away from UV light. Shelf life: 12 months unopened.

Biocompatibility & Clinical Use

Formulated for permanent intraoral use with full occlusal loading
Biocompatible for long-term mucosal and soft tissue contact
Recommended for use with a final glaze or polish for optimal surface hardness and aesthetics
For professional dental use only.
