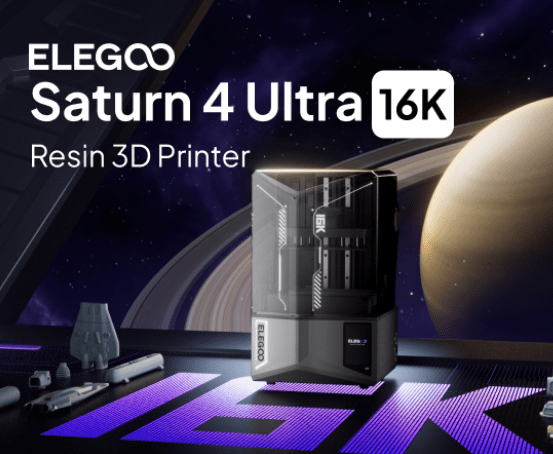

Elegoo Saturn 4 Ultra 16K

Elegoo Saturn 4 Ultra 16K

LE 77,500.00 EGP
LE 83,500.00 EGP LE 77,500.00 EGP
Sale Sold out
Shipping calculated at checkout.

Key Features & Innovations

  • Tilt-Release Speed Technology: Unlocks print speeds up to 150 mm/h by tilting the vat after each layer, drastically reducing peel forces and print times without compromising print quality.

  • Smart Active Resin Tank Heating (30°C): Maintains consistent 30°C resin viscosity even in cold ambient environments, ensuring reliable layer adhesion and preventing print failures across technical and dental resins.

  • Hands-Free Auto-Leveling: True plug-and-play mechanical sensor calibration eliminates manual build plate leveling.

  • Integrated AI Camera & Wi-Fi: Real-time remote monitoring, automatic failure detection (empty build plate, model warpage), and time-lapse video generation via ChiTuBox or EL3D software.

Technical Specifications

  • Technology: MSLA (Masked Stereolithography) / LCD Resin 3D Printing
  • LCD Resolution: 16K (16,000 × 9,000 px)
  • XY Resolution: 19 × 24 µm
  • Z-Axis Resolution (Layer Thickness): 0.01 – 0.2 mm
  • Build Volume: 218.88 × 123.12 × 220 mm
  • Print Speed: Up to 150 mm/h (Tilt-Release mode)
  • Light Source: COB + Fresnel Lens (uniform, high-intensity UV matrix)
  • Wavelength: 405 nm
  • Resin Compatibility: Compatible with standard 405 nm dental resins including temporary crown & bridge, permanent crown & bridge, surgical guide, model, and splint resins
  • Resin Vat Heating: Active heating to 30°C (maintains optimal resin viscosity)
  • Connectivity: Wi-Fi, USB
  • Slicing Software: ChiTuBox, EL3D (included), Lychee Slicer (compatible)
  • Machine Dimensions: 327 × 309 × 604 mm
  • Machine Weight: ~14.5 kg
  • Power Requirements: 100–240V AC, 50/60Hz

Compatible Resins (Available at Fab Dent)

Warranty & Support

  • Warranty: 12-month manufacturer warranty covering hardware defects and component failures.
  • After-Sales Support: Our dental 3D printing specialists are available to assist with setup, calibration, print settings, and resin compatibility. Reach us via WhatsApp or email for fast, expert support.
  • Local presence: Based in Egypt — faster support response and local delivery for dental clinics and labs.

Product features

Key Features

  • High mechanical strength – engineered to withstand long-term occlusal loads
  • Excellent surface finish – smooth, dense surface ideal for polishing and glazing
  • Strong biocompatibility – formulated for permanent intraoral use
  • Stable colour and opacity – consistent shade across print batches for natural-looking restorations
  • Precision fit – high dimensional accuracy for well-fitting crowns and bridges
  • 250ml bottle – enough resin for multiple permanent restorations
  • Available in shades A1, A2, and A3 – select your shade from the variant options above

Technical & Print Settings

  • Wavelength: 405 nm
  • Recommended Layer Thickness: 0.05 – 0.1 mm
  • Normal Exposure Time: 2.5 – 4 s (varies by printer and ambient temperature)
  • Bottom Exposure Time: 25 – 40 s
  • Post-Cure Time: 5 – 8 minutes under 405 nm UV light (longer cure improves mechanical strength)
  • Wash: Isopropyl alcohol (IPA) ≥95% or dedicated resin wash solution
  • Storage: Cool, dark location (15–25°C), away from UV light. Shelf life: 12 months unopened.

Biocompatibility & Clinical Use

  • Formulated for permanent intraoral use with full occlusal loading
  • Biocompatible for long-term mucosal and soft tissue contact
  • Recommended for use with a final glaze or polish for optimal surface hardness and aesthetics
  • For professional dental use only.

Ideal For

Permanent crowns, bridges, inlays, onlays, and veneers fabricated in dental clinics and laboratories with desktop dental 3D printers.

Materials and care

How to Use

  1. Select your shade (A1, A2, or A3) before adding to cart
  2. Shake well and load into your resin vat
  3. Print using the recommended settings above (fine-tune per your printer model)
  4. Wash in IPA for 3–5 minutes and air-dry
  5. Post-cure for 5–8 minutes under 405 nm UV
  6. Polish and glaze for a lifelike, durable final restoration

Compatible Printers (Available at Fab Dent)

  • Elegoo Saturn 4 Ultra 16K
  • Anycubic Photon P1 with Dual Plate Extension
  • Anycubic M7 Max

For professional dental use only. Store in a cool, dark place away from direct UV exposure.
